Introduction.
A plumbing system is a network of pipes, fixtures, and other apparatuses that transport water and waste in and out of houses and buildings. At its core, the system is designed to fulfill two primary objectives: to supply clean, potable water for drinking, cooking, and cleaning; and to remove wastewater efficiently, thus maintaining a hygienic and sustainable environment. The word “plumbing” derives from plumbum, the Latin word for lead, as the first effective pipes used in the Roman era were lead pipes.
In Uganda, plumbing is on the rise due to massive demand from urban growth, new constructions, aging infrastructure that needs extensive repairs and replacements, shift towards water and energy efficient plumbing systems, and accessibility considerations (aging population). Globally, the plumbing fixtures and fittings market is projected to grow to $145.16 billion by 2028, at a compound annual growth rate (CAGR) of 7.8%, according to The Business Research Company.
There are three (03) main types of plumbing systems, among them.
Potable water supply plumbing system.
This system brings fresh, pressurized water from the local utility or domestic well (borehole) into the building. It encompasses the network of pipes that transport water from the municipal supply or a private well (borehole) to various fixtures in the property. The system includes water meters, water pumps, valves, and pressure regulators to ensure a steady and reliable water flow that meets health standards.
Drainage plumbing system/stormwater drainage system.
The drainage system deals with excess water from rain, ground, and surface runoff. It includes components like gutters, stormwater drains, and sump pumps to direct water away from the building and prevent flooding or water damage. The design of the drainage system is crucial in areas prone to heavy rainfall or flooding, ensuring that water is efficiently channeled away from the property.
Sewage plumbing system/sanitary drainage and venting system.
The sewage system manages the removal of wastewater and materials from toilets, kitchens, and industrial processes. It connects to the city sewer or a septic tank, processing waste to prevent contamination and health hazards. This system is characterized by larger diameter pipes, traps, and vents to handle solid waste and prevent the buildup of sewer gases. It is generally referred to as the Drainage-Waste-Vent (DWV) system. The DWV system handles everything that happens after water goes down a drain. It carries wastewater out of the house and vents sewer gases so they escape safely outdoors. The drainage system works on the principle of gravity, allowing wastewater and sewage to flow down from fixtures into larger sewer pipes.
Plumbing can take various forms, including the following.
Residential plumbing system. This is typically simpler, serving the needs of a single family or multi family dwelling with a consistent daily water usage pattern. These systems are designed to handle moderate use, with a limited number of fixtures like sinks, toilets, water heaters, and showers. The design focuses on convenience, ease of use, and maintenance.
Commercial plumbing system. This is found in office buildings, shopping centers, schools, and industrial facilities, is more complex due to the higher volume of usage and the variety of their requirements. These systems must accommodate heavy, consistent water usage and manage significant waste disposal needs. They often include larger pipes, more sophisticated water heaters and boilers, and extensive sewage and drainage systems. Commercial plumbing may also need to support specialized equipment, comply with stricter health and safety regulations, and facilitate easier access for maintenance and repairs.
Industrial plumbing. This involves large, complex systems in factories, plants, and commercial buildings, handling high water volumes, toxic chemicals and gases, and heavy-duty fixtures, requiring specialized skills for installation, maintenance of boilers, HVAC, hazardous waste, industrial wastewater, and large-scale piping, differing from residential plumbing by scale, materials, and regulatory demands.
External plumbing. This involves pipes outside a building, handling clean water supply, wastewater drainage (sewage/septic), and storm runoff, often run along exterior walls or underground for supply lines (from street to house) and waste lines (away from house).
Internal plumbing. Also known as premise plumbing, it consists of the network of pipes and fixtures within a building used for water supply and waste removal. It is designed around the principles of gravity and pressure to ensure clean water is delivered and wastewater is safely expelled.
As one of the leading plumbing companies in Uganda, we offer high quality plumbing solutions that are compliant with the highest industry standards. Our comprehensive suite of plumbing related services includes.
- Preparation of MEP drawings, bills of quantities (BOQs), and As-Built drawings.

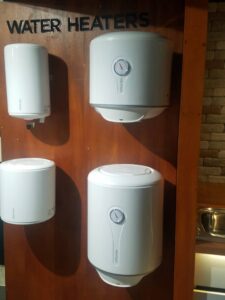

- Installation of water heaters i.e. instant water heaters (tankless water heaters) and solar water heaters.
- Pressure management systems for plumbing systems, including installation of pressure booster pumps.
- Active location and repair of leaks and pipe bursts; including installation of water leakage detectors.
- Jet blasting (drain jetting) and unblocking of clogged/blocked plumbing, sewer, and drainage systems.
- Desludging of filled up septic tanks (cesspool emptier services) and gulper services.

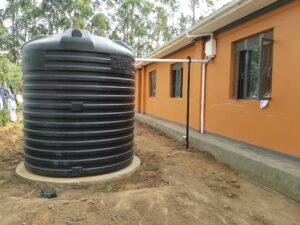

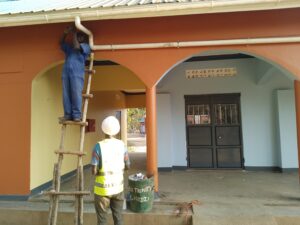

- Installation of plumbing systems, elevated water reservoir tanks, water pumps, guttering and rainwater harvesting systems, drainage systems, manholes, grease traps, septic tanks, drain fields, and soak pits.
- Water sub metering in multi user apartments.
- Installation of heating, ventilation, and air-conditioning (HVAC) systems.
- Installation of lawn irrigation systems, swimming pools, water fountains, and water treatment/water softening systems.
- Planned preventive maintenance (PPM) for plumbing, drainage, and sewer systems.
- Design and construction of sanitation facilities i.e. waterborne flushing toilets, smart toilets, accessible toilets, ventilated improved pit (VIP) stance latrines, lined pit latrines, and pour-flush pit latrines.
Types of Plumbing Pipes
Plumbing is an essential aspect of every home or building, ensuring the smooth flow of water and maintaining proper sanitation. When it comes to plumbing installations, one crucial consideration is the type of pipes used. Choosing the right plumbing pipes is crucial for ensuring the longevity, efficiency, and safety of your plumbing system. Common plumbing pipes include.
Copper pipes. The timeless classic.
Copper pipes have been a go-to choice for plumbing systems for decades. These pipes offer excellent durability, corrosion resistance, and a long lifespan. They can withstand high temperatures and are used for both hot and cold water supply lines. They are resistant to UV rays thus suited for both indoor and outdoor applications.
PEX pipes. Versatility and flexibility.
PEX (Cross-linked polyethylene) pipes have gained popularity in recent years due to their versatility and ease of installation. These flexible pipes are highly resistant to scale and chlorine, which helps prolong their lifespan. The flexibility of PEX allows it to navigate around obstacles without additional fittings, reducing potential leak points. They are commonly used for both hot and cold water distribution, as well as radiant heating systems. However, it is important to note that PEX is not suitable for outdoor applications due to UV sensitivity.
PVC pipes. The affordable solution.
PVC (Polyvinyl Chloride) pipes are widely recognized for their affordability and ease of installation. These pipes are lightweight, making them convenient to handle and transport. They are primarily used for drain, waste, and vent (DWV) systems; and are versatile and can be used indoors, outdoors, and underground. PVC pipes are not suitable for hot water applications as they have a lower tolerance for high temperatures.
Galvanized steel pipes. The sturdy choice.
Galvanized steel pipes were once a popular choice for plumbing systems but have become less common in recent years. These pipes are coated with zinc to prevent rust and corrosion, ensuring longevity. However, over time, the zinc coating can deteriorate, leading to rust and decreased water flow. Galvanized steel pipes are still found in older homes and buildings but are gradually being replaced by more advanced options.
CPVC pipes. The high-temperature solution.
Chlorinated polyvinyl chloride (CPVC) is an enhanced version of PVC specifically designed to handle hot water applications. They are highly resistant to high temperatures and can handle both hot and cold water distribution. CPVC pipes are commonly used in residential and commercial plumbing systems, particularly in areas where copper pipes may be prone to corrosion or scaling.
PE-RT pipes. The energy-efficient choice.
PE-RT (Polyethylene of Raised Temperature Resistance) pipes are a newer addition to the plumbing industry. These pipes offer excellent flexibility, making them easy to install in tight spaces. PE-RT pipes are known for their energy efficiency, as they minimize heat loss and are suitable for both hot and cold water distribution. They are also highly resistant to corrosion and chemicals, ensuring a reliable plumbing system.
Brass pipes. The durable and versatile option.
Brass pipes, a copper alloy with a distinctive golden appearance, have been used in plumbing systems for generations. They are commonly found in water supply lines and pump fittings due to their durability and ease of installation. They are resistant to corrosion, making them suitable for both indoor and outdoor installations. They also provide an aesthetic appeal, often used in exposed plumbing systems.
HDPE pipes. The reliable choice for underground applications.
HDPE (High-Density Polyethylene) pipes are commonly used for underground plumbing installations. These pipes are highly resistant to corrosion, chemicals, and UV rays, making them ideal for long-term durability. HDPE pipes are flexible and can withstand ground movement (shifting soil), making them less prone to cracks or leaks. They are commonly used for irrigation and underground water supply lines.
Cast iron pipes. The robust solution for drainage.
Cast iron pipes have a long history of use in drainage systems. Known for their exceptional durability, cast iron pipes are resistant to high water pressure and can handle heavy loads. They effectively dampen noise, making them an excellent choice for vertical stacks and sewer lines.
ABS pipes. The lightweight alternative for drainage.
Acrylonitrile butadiene styrene (ABS) pipes are easily recognizable by their solid black color. These rigid plastic pipes excel in drain-waste-vent (DWV) systems and sewer lines. They are lightweight and durable, making them a suitable choice for residential and commercial drainage systems. These pipes are resistant to chemicals and have excellent impact strength. ABS pipes are commonly used for bathroom and kitchen drainage, vent pipes, and waste disposal systems. They are easy to install and require minimal maintenance.
Stainless steel pipes. The corrosion-resistant solution.
Stainless steel pipes are known for their exceptional corrosion resistance and strength. They are commonly used in applications where hygiene is crucial, such as food processing facilities and healthcare environments. Stainless steel pipes can withstand high temperatures, making them suitable for both hot and cold water distribution. They are also resistant to scaling and offer a long lifespan, thus a reliable choice for various plumbing needs.
Polypropylene pipes. The chemically resistant option.
Polypropylene pipes are highly resistant to chemicals, making them ideal for industries that require chemical transportation. These pipes are lightweight, making them easy to handle and install. Polypropylene pipes offer excellent chemical resistance, ensuring the integrity of the plumbing system when exposed to aggressive substances. They are commonly used in laboratories, chemical processing plants, and industrial facilities.
Composite pipes. The blend of strength and flexibility.
Composite pipes combine different materials to leverage their individual benefits. For example, a composite pipe may consist of layers of PEX and aluminum, offering the strength of metal and the flexibility of plastic. These pipes provide excellent thermal conductivity and are resistant to corrosion. Composite pipes are commonly used in radiant heating systems, underfloor heating, and hydronic applications.
Copper-alloy pipes. The antimicrobial and durable solution.
Copper-alloy pipes, such as copper-nickel and copper-silicon, provide the benefits of copper while enhancing specific properties. These pipes offer antimicrobial properties, preventing the growth of bacteria and ensuring clean water supply. Copper-alloy pipes are commonly used in marine environments, offshore structures, and healthcare facilities where microbial control is crucial.
UPVC pipes.
UPVC (Unplasticised PVC) pipes are essentially rigid PVC pipes without added plasticizers, making them stronger and more durable. They are designed for both pressure and non-pressure plumbing systems. They are used in soil and waste applications due to their ability to resist corrosion and harsh environmental exposure.
PPR Pipes.
PPR (Polypropylene Random Copolymer) pipes are a modern plumbing solution for hot and cold-water supply systems. These pipes are highly durable and hygienic, making them ideal for residential complexes, hotels, hospitals, and even chemical industries. They are suitable for demanding applications due to their high temperature and pressure tolerance. PPR pipes are designed to withstand temperatures up to 95°C, offering excellent chemical resistance and preventing oxidation and calcification.
Components of Plumbing Systems
In the heart of every home lies a vital infrastructure known as the plumbing system. It is the unseen network of pipes, valves, and fixtures that enables the distribution of water and the removal of waste. The essential components of any plumbing system include.
Water supply system.
The water supply system is responsible for bringing fresh water into the home. This system begins with the main water line, which connects the home to the public water supply. Water enters the home through a service line, which is often buried underground. Finally, the water then passes through a water meter that measures the household’s water usage.
Pipes and fittings. The arteries of water flow.
Pipes form the backbone of any plumbing system, serving as the conduits through which water travels. These cylindrical channels ensure a seamless flow of water to various areas of the home. Meanwhile, components like elbows, tees, and couplings connect different sections of pipes and direct water flow.
Valves. Mastering water control.
Valves are the control points of the plumbing system, allowing one to regulate the flow of water. From shutting off the water supply to specific areas during maintenance or in case of a leak to controlling water pressure, valves play a pivotal role in maintaining system integrity. Valves come in different types such as gate valves (control flow in larger pipes), ball valves (provide a reliable seal), check valves (prevent backflow), and pressure reducing valves (PRVs), that help maintain safe water pressure levels throughout the home. A stop valve, usually located next to the water meter, is a brass valve that can be turned to shut off the water supply and typically takes the form of a gate valve.
Faucets. Precision water dispensers.
Faucets, those familiar taps in kitchens and bathrooms, are where water is dispensed for various purposes. These fixtures not only offer control over water flow and temperature but also add aesthetic value to spaces.
Fixtures and appliances. Where form meets functionality.
In a plumbing system, fixtures are devices that use water, such as sinks, toilets, showers, water heaters, and bathtubs. Each fixture has its own set of supply and drain lines that connect to the main water and drainage systems. Appliances like washing machines and dishwashers also connect to the plumbing system.
Drains. Guiding water away.
Drains are the unsung heroes of the plumbing system, responsible for whisking away used water and waste. Strategically placed in sinks, showers, and other areas, drains ensure a clean and sanitary living environment. Further, it also includes components such as waste traps/water trap seals (P-traps, S-traps, gully traps, bottle traps) and plumbing vents that prevent foul odors and harmful sewer gases such as methane and hydrogen sulfide from entering the home.
Sewer or septic system.
The sewer or septic system is responsible for removing wastewater from the building and transporting it to a treatment facility. In a sewer system, the wastewater is transported through a network of pipes to a treatment facility. Houses that are not connected to a public sewer use septic tanks instead. It processes and disposes of wastewater onsite into a drain field/leach field. As wastewater fills the septic tank, sediments settle at the bottom, bacteria partially breaking down the particles in the tank to produce sludge.
Benefits of MEP Drawings in Design and Installation of Plumbing Systems
MEP stands for Mechanical, Electrical, and Plumbing. An MEP drawing is a detailed representation of these critical systems in a building. It illustrates how HVAC (Heating, Ventilation, and Air Conditioning), electrical wiring, lighting, control systems, water supply, drainage, and fire protection systems will be installed and function within a structure. It is sometimes called MEPFP. MEPFP is just MEP (mechanical, electrical, and plumbing) + FP (fire protection) systems. The thought process is to make sure that absolute safety is implemented where all of its keepers and users feel not just comfortable but also safe.
The MEP plans for construction focus on the systems within the building that are necessary for life and functionality. Fire protection (FP) is another level which lends an important measure of safety by planning and installing systems to identify and extinguish fire, control heat and smoke spread, and be a safe exit for the occupants such as sprinklers, alarms, and fire suppression systems.
HVAC shop drawings. Include coordinated duct sizes and layouts, equipment details, connections, offset transitions, access clearance for VCDs/fire dampers, and tagged air terminal interfaces for ceiling integration.
Electrical shop drawings. Capture electrical wiring, panel boards, tray-to-panel connectivity, load segmentations, embedded conduit paths through structural elements, and feeder cable terminations tied to source scheduling.
Plumbing shop drawings. Show vertical stack alignment with core risers, fixture branch routing within wall cavities, cleanout access zoning, and pressure zone transitions for booster integration.
Fire protection shop drawings. Define head spacing around obstructions, zone valve box positions, main-feed routing through shafts, and seismic bracing requirements.
Accurate and detailed installation plans.
One of the main reasons plumbing shop drawings are so crucial for builders is their ability to provide an accurate, detailed plan for installing the plumbing system. A well-drawn plumbing shop drawing specifies every component, from pipes and fittings to fixtures and valves. This level of detail ensures that the plumbing system is installed according to the specifications laid out by the engineer. Builders can refer to these drawings throughout the installation process, ensuring that there are no missing steps and that all components are correctly positioned. The drawings also minimize confusion, helping plumbers and contractors understand the exact locations of pipes and fixtures and preventing costly mistakes and delays arising from misunderstandings or incorrect installations.
Coordination with other trades.
Multiple trades (electricians, HVAC, structural engineers, etc.) work simultaneously in large construction projects. Plumbing shop drawings allow for proper coordination between different contractors and trades. By integrating plumbing systems with electrical and HVAC systems, builders can ensure no clashes or interferences between systems. For example, the plumbing drawings might show where pipes run about HVAC ductwork or electrical conduits. This coordination is crucial to prevent clashes that could lead to costly rerouting or rework later in construction. Effective coordination through accurate plumbing shop drawings ensures that all systems function seamlessly within the space, allowing the project to move forward smoothly.
Compliance with local codes and standards.
Every plumbing system must meet local building codes and industry standards to ensure safety, reliability, and environmental compliance. Plumbing shop drawings help builders meet these requirements by providing a visual reference for code-compliant installations. Engineers or authorities with jurisdiction often review shop drawings to ensure that the system adheres to all necessary regulations. By incorporating these codes into the drawings, builders can avoid costly fines, redesigns, or delays caused by non-compliance. Furthermore, plumbing shop drawings are a documentation tool proving the plumbing system aligns with the relevant standards. This documentation can be invaluable during inspections or audits.
Cost and time efficiency.
When it comes to construction, time and money are of the essence. Plumbing shop drawings help builders save both by reducing errors and the need for rework. When plumbers and contractors have access to clear and precise plans, they can complete the plumbing installation more efficiently, reducing labor costs and construction time. Additionally, accurate plumbing shop drawings help to avoid the need for costly modifications during the construction phase. If plumbing systems are not adequately planned, a design change may be needed midway through the project. Such changes can lead to delays, increased labor costs, and material waste. By investing in plumbing shop drawings upfront, builders can significantly reduce these risks, leading to smoother, more cost-effective project execution.
Clear communication among project stakeholders.
Construction projects involve multiple stakeholders, including builders, architects, engineers, contractors, and subcontractors. Clear communication between all parties is essential for a project to run smoothly. Plumbing shop drawings facilitate this communication by providing a detailed and standardized visual reference that all stakeholders can refer to. When everyone can access the exact drawings, misunderstandings, and miscommunications are minimized. Plumbers, contractors, and other team members can quickly identify the plumbing system layout and ensure they are on the same page. This clarity helps reduce errors and confusion during the installation process.
Reduced risk of errors and rework.
Errors in plumbing installations can be costly. If pipes are installed incorrectly, leaks may occur, fixtures may not function properly, and the entire plumbing system might need to be reworked. Plumbing shop drawings reduce this risk by providing detailed, clear instructions on how and where each plumbing system component should be installed. With these drawings, plumbers and contractors are better equipped to perform their work correctly the first time. Since shop drawings are reviewed and approved by engineers, the risk of errors due to poor design is also minimized. Builders can rely on these drawings to ensure that the plumbing installation is done right; reducing the chances of tearing out and replacing any work later.
Improved quality control.
Plumbing shop drawings are a reference for quality control throughout the construction process. Builders can use these detailed plans to inspect and ensure that the plumbing work is done according to the specifications outlined in the drawings. These inspections help catch issues early before they become more significant, ensuring the final plumbing system is high quality. If any deviations from the plan are found during inspections, corrective actions can be taken immediately, preventing delays and further issues.
Facilitate future repairs and maintenance.
Plumbing shop drawings aren’t just helpful during construction but crucial in future maintenance and repairs. After the building is completed, these drawings serve as a valuable reference for maintenance teams or contractors who need to repair or replace plumbing components. Having a clear visual of the plumbing layout helps maintenance teams identify the location of pipes, valves, and fixtures, which can save time and effort during repairs. The drawings also help prevent accidental damage to other systems during maintenance work.
Helps with cost estimation and budgeting.
Before construction begins, builders need to estimate how much the plumbing system will cost accurately. Plumbing shop drawings assist in this process by providing a detailed breakdown of the materials and labor required for the installation. By reviewing the shop drawings, builders can accurately assess the amount of piping, fixtures, and fittings needed. This helps ensure the project stays within budget and that there are no surprise expenses during construction. It allows for better overall project planning and financial management.
Long-term project success.
Plumbing shop drawings contribute to long-term success of a construction project. They ensure the plumbing system is installed efficiently, meets all regulations, and operates as intended. A well-designed plumbing system reduces the likelihood of problems, such as leaks or clogs that might arise later. By setting a solid foundation with accurate plumbing shop drawings, builders can deliver high-quality projects that stand the test of time, providing value to their clients and helping to establish a reputation for reliability and professionalism.
Key Factors in Design and Selection of Plumbing Systems
Understanding building layout. One of the first steps in plumbing design is gaining a thorough understanding of the building layout. This involves studying blueprints and floor plans to determine the optimal placement of plumbing fixtures, pipes, and fittings. A clear understanding of the building layout enables design engineers to create efficient and practical plumbing solutions.
Water source and quality. The water source (municipal supply, private well etc.) directly impacts the system design. Quality concerns, such as hardness, mineral content, and potential contaminants, must be addressed to determine the need for water treatment systems like water softeners or water filters and purification systems.
System capacity and demand. The plumbing system must be designed to meet the peak demand of the building. This involves calculating the simultaneous usage of all fixtures to ensure the system can deliver sufficient water volume and drainage capacity, avoiding overloads or inefficiencies.
Energy efficiency. Energy considerations are increasingly important in plumbing design, especially regarding hot water systems. Energy-efficient designs include properly sized water heaters and potentially incorporating renewable energy sources like solar water heaters to reduce overall energy consumption.
Compliance with local codes and regulations. Adherence to local plumbing codes is non-negotiable. These regulations govern installation practices, materials, and system designs to ensure safety, health, and environmental protection. Compliance avoids legal issues and ensures the system’s reliability and safety.
Water pressure and flow rate. Adequate water pressure and flow rate are essential for plumbing system functionality. These factors depend on the pipe diameter, system design, and elevation changes within the building. Design engineers must ensure that water pressure is sufficient to reach all fixtures, especially in multi-story buildings, without exceeding pressure limits that can cause pipe damage.
Accessibility and maintenance. Incorporating accessibility features into plumbing design is essential for ongoing maintenance and repair activities. Access panels, shut-off valves, and clear labelling facilitate easier troubleshooting and servicing of plumbing systems. Designing with maintenance in mind can save time and money over the life of the building.
Environmental considerations. In today’s environmentally conscious world, sustainable plumbing practices are gaining traction. From rainwater harvesting systems to greywater recycling, there are various ways to minimize the environmental impact of plumbing systems in commercial buildings. Design engineers should explore these options to align with green building principles.
Budgeting and cost considerations. Budgeting for plumbing design requires careful consideration of upfront costs versus long-term savings. While quality materials and professional installation may entail higher initial expenses, they often pay off in terms of reliability and durability. Designing with cost-effectiveness in mind involves striking the right balance between quality and affordability.
Collaboration with other trades. Successful plumbing design relies on seamless integration with other building systems. Collaboration with electricians, HVAC technicians, and other trades is essential to ensure compatibility and avoid conflicts during construction. Effective communication and coordination among all stakeholders are key to a smooth project execution.
Water demand. Design consultants typically design a system based on peak water usage to ensure sufficient supply throughout the facility. Therefore, the team must analyze the water consumption patterns across different departments and processes.
Drainage capacity. The drainage system must be appropriately designed to handle the expected volume of wastewater without causing blockages or overflows. The number of fixtures, flow rates, and the potential presence of solids or hazardous materials influence the design.
Material selection. The material selection for your piping system must be based on the specific environment in which it will be installed. Factors such as corrosion resistance, temperature tolerance, and compatibility with the fluids being transported should all be weighed carefully. The right materials can extend the life of your system and improve overall reliability.
Plan for future growth. Commercial buildings are often modified and expanded over time. A well-designed plumbing system should be adaptable to these changes. Planning with future proofing in mind will save costs and disruptions down the road, ensuring that the system can be expanded or modified with minimal impact.
Key Steps in Installation of Plumbing Systems
The installation of a plumbing system is a complex process that involves careful planning and execution to ensure compliance with local building codes and standards. Here is a step-by-step guide to understanding how professional plumbing installation unfolds.
Design and planning.
The process begins with a detailed design of the plumbing system, which includes the layout of plumbing lines, fixture locations, and the types of materials to be used. Plumbing design engineers also keep an eye out for special situations such as multi-story homes, slab-on-grade foundations, older framing, or long fixture runs. This plan should comply with local plumbing codes and regulations.
Obtaining permits.
Before any work begins, the necessary permits must be obtained from local authorities. This step typically involves submitting detailed plans and specifications (MEP drawings) for review by regulatory bodies. Permits ensure the planned work meets all legal and safety standards.
Installation of underground pipes.
For new constructions, plumbing installation starts with laying the underground pipes before the foundation is poured. This includes plumbing lines for waste removal and water lines for the supply, requiring precise execution to ensure correct slope and alignment. Choosing the right pipe materials is critical, as repairs after building completion can be complex and costly. In the underground phase, most professional plumbers use durable materials like PVC for drains and high-density polyethylene (HDPE) or copper for water service lines, depending on local codes and soil conditions.
Rough-in stage.
Once the structure is up, the plumber (pipefitting engineer) performs the above-ground rough-in work, which involves installing pipes within walls and floors. This stage sets up the framework for the later installation of fixtures and appliances, with careful routing to accommodate the building’s layout and design. Pressure tests are often conducted to ensure no leaks are present in the pipes.
Connection to water and sewer lines.
After the rough-in is approved, the next step involves connecting the internal plumbing network to the municipal water and sewer systems or other external water sources and waste disposal solutions. For most homes on municipal utilities, the plumber connects to the city’s water service at the property line. If the home relies on a well (borehole), the connections are made to the well pump instead. On the sewer side, the building’s drain line ties into the city sewer lateral or, in rural areas, the inlet of a septic tank. Once the connections are made, the system is tested again to confirm proper flow, drainage, and pressure.
Installation of fixtures.
After the building’s interior is near completion, plumbers install fixtures like sinks, indoor and outdoor faucets, toilets, water heaters, and showers. Each fixture is carefully fitted and tested to ensure it operates correctly, with no leaks and proper water flow.
Testing and inspection.
After all pipes and fixtures are installed, the whole plumbing system should be tested and inspected before the job is considered finished. If a leak shows up during testing or after you have moved in, ask the plumber to come back, fix it, and retest the system. Most reputable plumbers cover this in their warranty or contract, so read those terms and keep a copy for your records.
Maintenance and Repair of Plumbing Systems
Tree root intrusions and landscaping considerations. Tree roots naturally seek out water, and underground pipes are often a prime target. Over time, roots can wrap around or penetrate pipes, exerting pressure that leads to cracks and leaks. To avoid this, plant trees and large shrubs away from water lines or consider root barriers.
Hard water and water treatment system installation. Hard water contains high levels of minerals like calcium and magnesium, which can build up inside pipes, slowing water flow and causing corrosion. Installing a water treatment system (water softener) to remove these minerals can help protect pipes and extend their lifespan. A water softener is a great way to reduce hardness and thus minimize corrosion. In addition, chemically balancing pH levels of water will protect pipes by preventing acidic or basic conditions.
Cleaning pipes and drains. Hair, grease, and other debris might build up in drains and pipes over time, causing poor drainage and uneven backups. Regular cleaning of pipes and drains can prevent these build-ups and ensure smooth water flow. In order to clear any obstructions and avoid further clogs, ensure to regularly clean drains and pipes.
Monitoring the sewage line. Regularly inspect the sewer line for signs of damage or obstructions, such as tree roots or trash. Identifying issues early can prevent severe sewer backups and costly repairs. By identifying these problems early, we can avoid sewer backups and other pricey problems.
Pressure regulation. Too much water pressure damages pipework. Maintaining correct water pressures is vital. Installing an automatic pressure regulator in the plumbing system can help reduce the stress pipes and increase their lifespan.
Grease trap replacement. Over time, grease traps can corrode, clog, or lose their effectiveness. Commercial grease trap replacement involves removing outdated units and installing modern, code-compliant systems for improved performance.
Install strainers and screens. These simple devices in drains catch debris and prevent it from building up in the piping system.
Common Mistakes in Design, Installation, and Operation of Plumbing Systems
Selecting the wrong pipe type. One of the most important plumbing decisions is choosing the proper type of plumbing pipe. Installing the incorrect type of pipe, like a PVC pipe when a metal pipe would be needed, will result in inefficiencies and hazards. For instance, PVC pipes are ideal for drain lines and cold water supply because they resist corrosion and are inexpensive. But they are not ideal for hot water lines since PVC melts when exposed to high temperatures. Always seek advice from a professional to make sure that the proper type of pipe is installed in the proper application.
Improper pipe sizing and routing. Employing pipes that are undersized may affect water pressure and slow drainage, while oversized pipes might cause water and energy wastage. Proper pipe sizing is important to allow efficient flow of water and system pressure. Poor routing/layout planning may result in long pipe runs, excessive bends, and unnecessary friction losses.
Over-tightening connections. This may sound like a good practice to avoid leaks, but it may actually damage the pipes, particularly if they are PVC or other plastic pipes. Over-tightening may result in cracked fittings or broken seals, which can cause leaks that need to be repaired again.
Failing to support pipes. Plumbing pipes must be supported at regular intervals to avoid sagging and breakage over time. Unsupported pipes may bend or sag under the load of water they transport, especially at extreme temperatures. Make sure plumbing installations have proper support, employing straps at prescribed intervals.
Neglecting maintenance access during design. In pursuit of aesthetic or compact designs, some MEP layouts restrict access to valves, ducts, filters, and other critical components, making routine maintenance difficult.
Neglecting preventive maintenance. Preventive maintenance refers to proactive measures taken to prevent issues before they occur. This includes regular inspection, cleaning, and servicing of plumbing systems to identify and address potential problems early on, avoiding costly repairs or emergency plumbing callouts.
Overlooking water pressure issues. High water pressure might seem beneficial but can strain pipes over time. Ignoring this issue leads to wear and tear, potentially causing pipe bursts. Monitoring and adjusting water pressure maintains a balanced system, prolonging its lifespan.
Use of low quality plumbing materials. Choosing low-quality materials for repairs or installations may save money initially but often results in future costs. Investing in durable materials ensures longevity and reliability, reducing the frequency of required upkeep.
Poor drain design and installation. Poor drainage design, such as pipes installed with insufficient fall (slope) or pipes that are too narrow for the home’s needs. This can lead to slow drainage and frequent backups.
Ignoring energy efficiency measures. Failing to incorporate energy-efficient design not only raises operating costs but can also impact project sustainability ratings and tenant satisfaction.
Improper disposal of waste. The only things that should be flushed down a toilet are human waste and toilet paper. For other drains, only water should go down. Flushing non-flushable items, baby wipes, cotton balls, sanitary products, diapers, or food scraps can cause significant clogs and sewer line issues.
Common Challenges of Plumbing Systems
Domestic plumbing systems.
Water hammer. Water hammer is a phenomenon that can occur in all kinds of plumbing systems that use valves to control water flow. When the valves are used to shut off the water flow quickly, air is trapped in the plumbing system, causing a pressure surge or a shockwave. As the pressure surge cannot be absorbed by water in a short time, the change in momentum will make the water slam against the wall of the pipes. This shockwave is also commonly referred to as a hydraulic shock or hydraulic surge, and may be characterized by a marked banging or knocking sound on the pipes immediately after shutoff. Water hammer can ultimately result in severe damage to pipework system, with long-term effects presenting themselves in the form of leaky pipes and ruptured pipes.
Shifting soil. Changes in soil conditions due to settlement, construction, or landscaping activity can put pressure on underground pipes, leading to cracks and bursts. This is common if pipes are not buried deep enough.
Clogged drains/blocked drains. When it comes to clogged drains, various factors can contribute to the problem. Hair accumulation is a common issue in bathroom drains, while kitchen drains often suffer from the buildup of soap scum, residue, and food waste. Blockages can also occur due to foreign objects, mineral buildup caused by hard water, and invasive tree roots.
Burst pipes. A serious plumbing problem that can seriously harm property is burst pipes. Burst pipes can be a cause of old pipes or excessive water pressure. In addition to the immediate damage caused by water flooding, burst pipes can lead to longer-term structural damage and mold growth.
Unpleasant odors from multiple drains. Foul smells emanating from drains indicate decomposing material trapped within pipes. These organic blockages can quickly become breeding grounds for bacteria, creating health hazards and unpleasant living conditions.
Leaking pipes. Pipe leakages can arise from various causes such as corrosion, high water pressure, faulty pipe joints or fittings, physical damage, ageing and wear, poor water quality, and improper installation. The gradual weakening of pipes due to corrosion, combined with excessive water pressure or damaged connections, can result in leaks. Ageing pipes and poor water quality also contribute to pipe deterioration and subsequent leaks.
Low water pressure. Insufficient water pressure manifests as a reduced flow from faucets and fixtures, complicating everyday tasks like showering and dishwashing. The presence of low water pressure can stem from different factors, including partially closed valves, pipe leaks, mineral buildup, clogged pipes or fixtures, water utility or municipal water supply problems, faulty pressure regulators, improperly sized pipes, and location-related aspects like elevation or distance from the water source. This issue not only disrupts daily activities but also undermines the efficiency of appliances such as dishwashers and washing machines.
Tree root intrusions. Roots from trees and shrubs can exert considerable force on water pipes, causing them to crack or rupture. As roots seek sources of water/moisture and nutrients, they can penetrate small openings or joints in pipes, leading to blockages, leaks, and eventually bursts. Over time, these roots exert pressure on pipes, causing them to crack or break, leading to leaks.
Industrial plumbing systems.
Clogged or slow drains. Drains that handle high volumes of wastewater are prone to clogs, especially when they carry sediments, debris, or industrial byproducts. Over time, these materials accumulate in the pipes, reducing water flow and causing backups.
Pipe corrosion. Older industrial facilities or those that use highly corrosive chemicals can experience accelerated pipe corrosion. Corroded pipes weaken over time, contaminating water supplies with rust and other particulates. Signs of corrosion often include discolored water, leaks, and noticeable reduction in water pressure.
Low water pressure. A sudden drop in water pressure can indicate various issues, from simple clogs in supply lines to more complex problems like leaks, faulty pumps, or even system-wide pressure imbalances. Low water pressure may hamper critical processes in the facility, particularly if water is essential for cooling, cleaning, or manufacturing steps.
Burst or cracked pipes. Burst or cracked pipes are among the most severe plumbing emergencies that can strike an industrial facility. They can occur due to excessive water pressure or internal corrosion, weakening the pipe’s structure. The resulting water damage can destroy equipment, compromise building foundations, and force lengthy shutdowns for repairs and clean-up.
Sewer line backups. Industrial facilities often have complex sewer systems designed to handle large volumes of waste. When these lines become blocked; by debris, grease buildup, or foreign objects, sewage can back up into the building, creating health hazards and potentially halting operations.
Damaged or worn-out seals and gaskets. Industrial plumbing systems rely heavily on various seals and gaskets to maintain watertight connections between pipes, valves, and other components. Over time, these seals can degrade due to heat, chemical exposure, or simple aging. A failing seal can lead to leaks or sudden bursts under high pressure.
Valve failures. Valves control the flow of water and other liquids throughout plumbing systems. In industrial environments, these valves can be subject to frequent operation and extremes in pressure and temperature. Over time, they may seize, leak, or fail to close completely. A malfunctioning valve can result in inadvertent water wastage, uneven water pressure, or even safety risks if certain processes require precise fluid regulation.
Factors that Influence Costs of Plumbing Systems.
Complexity of the job. The complexity of the plumbing task plays a crucial role in determining the cost. Simple repairs that can be completed quickly and with minimal equipment will generally cost less than more involved projects. For example, installing a new plumbing system in a building or remodeling a bathroom involves a comprehensive planning, careful execution, and possibly dealing with unexpected issues such as outdated infrastructure or hidden leaks.
Materials and equipment used. The choice of materials can significantly impact the cost of a plumbing job. High-quality materials such as copper piping are more expensive than alternatives like PVC. However, these materials often offer greater durability and reliability. Additionally, specialized equipment might be needed for specific tasks, which can add to the overall expense.
Location and accessibility. The physical location of the plumbing issue/site and its accessibility can also affect the cost. Jobs in urban areas may have higher rates due to increased demand and cost of living, while those in rural areas may be less expensive but could incur additional travel charges. Furthermore, if the plumbing issue is in a difficult-to-access area, such as behind walls or underground, it may require additional labor and equipment, increasing the overall cost.
Experience and expertise of the plumber. Plumbers with extensive experience and a solid reputation may charge higher rates due to their expertise and ability to provide high-quality service. While hiring a more affordable, less experienced plumber might seem like a cost-saving measure, it can sometimes lead to additional expenses if the work is not performed correctly. Experienced plumbers may charge more, but they can often diagnose and fix issues more efficiently, potentially reducing the overall cost of the repair.
Emergency services/emergency fees. Plumbing problems do not always wait for a convenient time to happen; and do not necessarily happen during regular business hours. Emergency repairs, such as a midnight or weekend pipe burst, can be more expensive due to the urgency and inconvenience.
Conclusion
A well-functioning plumbing system depends on the quality and compatibility of plumbing fixtures and fittings used. With the wide variety of plumbing materials available on market, choosing the right systems for a project can be a challenging decision. The best recommendation is getting in touch with professional plumbing engineers and learning about each material available and its features. This way, you can make sure that your plumbing installation uses the most suitable materials for your project conditions and budget.
At SANKOFA, we offer high quality end-to-end plumbing services; right from designing to installation and maintenance for commercial complexes, high-rise buildings, institutions, and industrial facilities. Our team of duly licensed and experienced plumbers and engineers uses state of the art tools and techniques to ensure every plumbing project we undertake is executed with precision and finesse.
